2 Component Electric Injection Grouting Pump

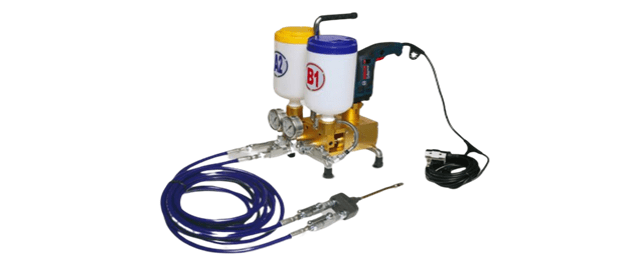

  • SE 300 Is a professional Injection Pump electronic drill powered and designed especially for easy and fast injection of double component synthetic resin to the concrete structures.
  • The two components, generally named as Type A & Type B, of the grout are mixed in a definite proportion and used to fill voids.
  • These grout chemicals are very fast acting and needs immediate attention after mixing, the pump ejects the chemicals mixture immediately after mixing, which avoid the settling of grout mixture in pump line or hose line, hence it gives mess free working.

Specifications:

  1. Working Pressure: > 8000 PSI. Suitable for Injection Grouting
  2. Flow Rate: 1000 mil per minute.
  3. Hopper: 2 LTR Stainless Steel.
  4. Hose: 400 bar pressure.
  5. Ball Valve: 400 bar pressure.
  6. Pressure Gauge: 600 bar pressure.
  7. Gear Box Lubrication: Grease.
  8. Fluid Handled: PU or EPOXY RESIN.
  9. Fluid Viscosity: 10-1000 cps.
  10. Electrical connections: Single Phase 220 v.
  11. Easy to clean and maintained.
